Overview
Product Overview
One of our most popular ACO Drain products, KlassikDrain is a general-purpose polymer concrete trench drain system with channels available in 4” (K100), 8” (K200) or 12” (K300) internal widths.
- Channels are manufactured with 0.5% standard slope
- 40 continuous one-meter sections
- Protective edge rails in galvanized steel (K series) or 304 stainless steel (KS series)
- Wide range of grates from ADA-compliant to heavy vehicular and airport rated
KlassikDrain Features
Ease of Installation
- Interconnected channels allow for quick installation
- QuikLok or Drainlok boltless locking system allows for rapid installation and easy removal of grates
- Directional arrows indicate drainage flow to aid in proper installation
- Knock outs at every 5th channel allow for vertical evacuation of system

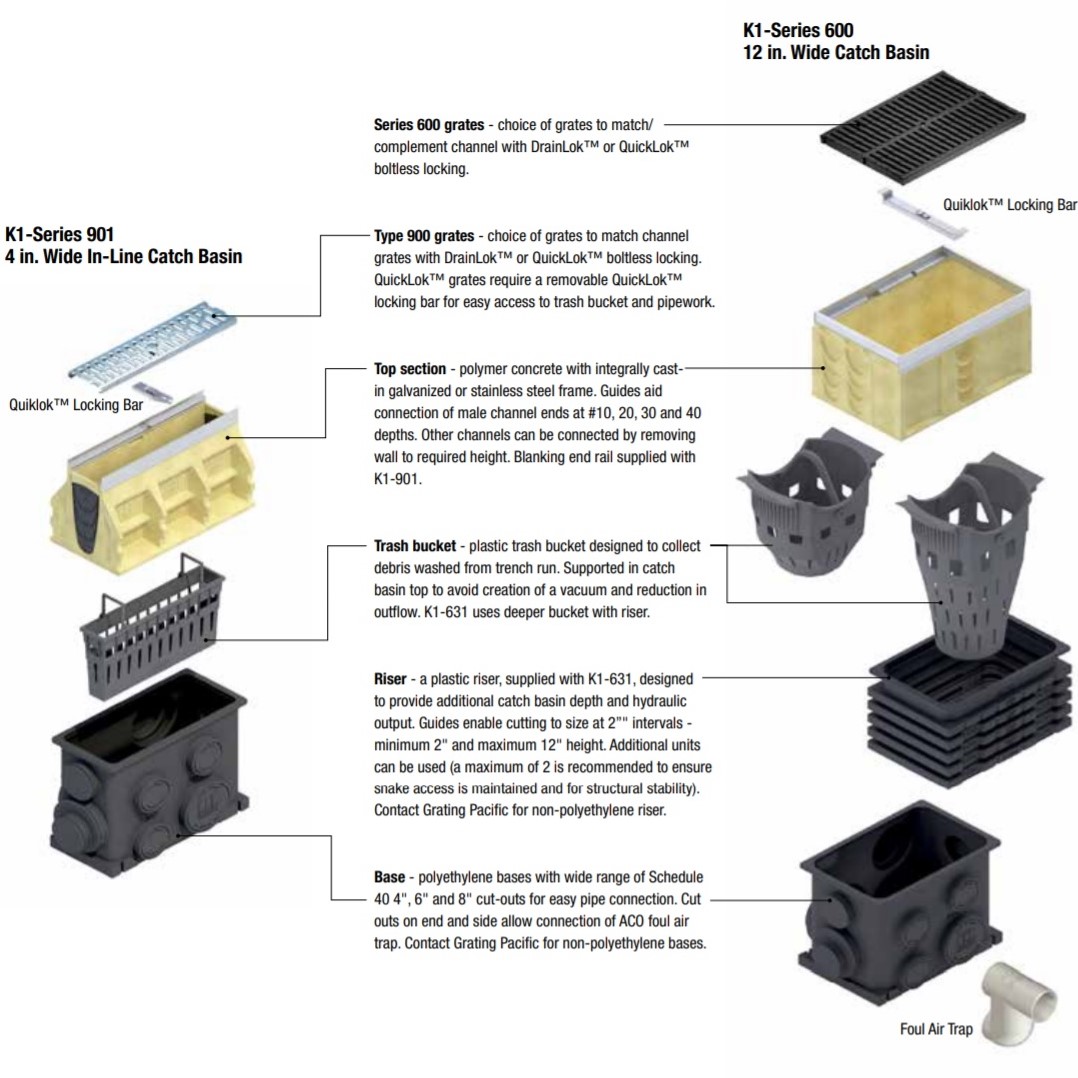

- In-line catch basins available and easy to install
- Optional channel seats assist installation
K100 / KS100
4″ internal width channel

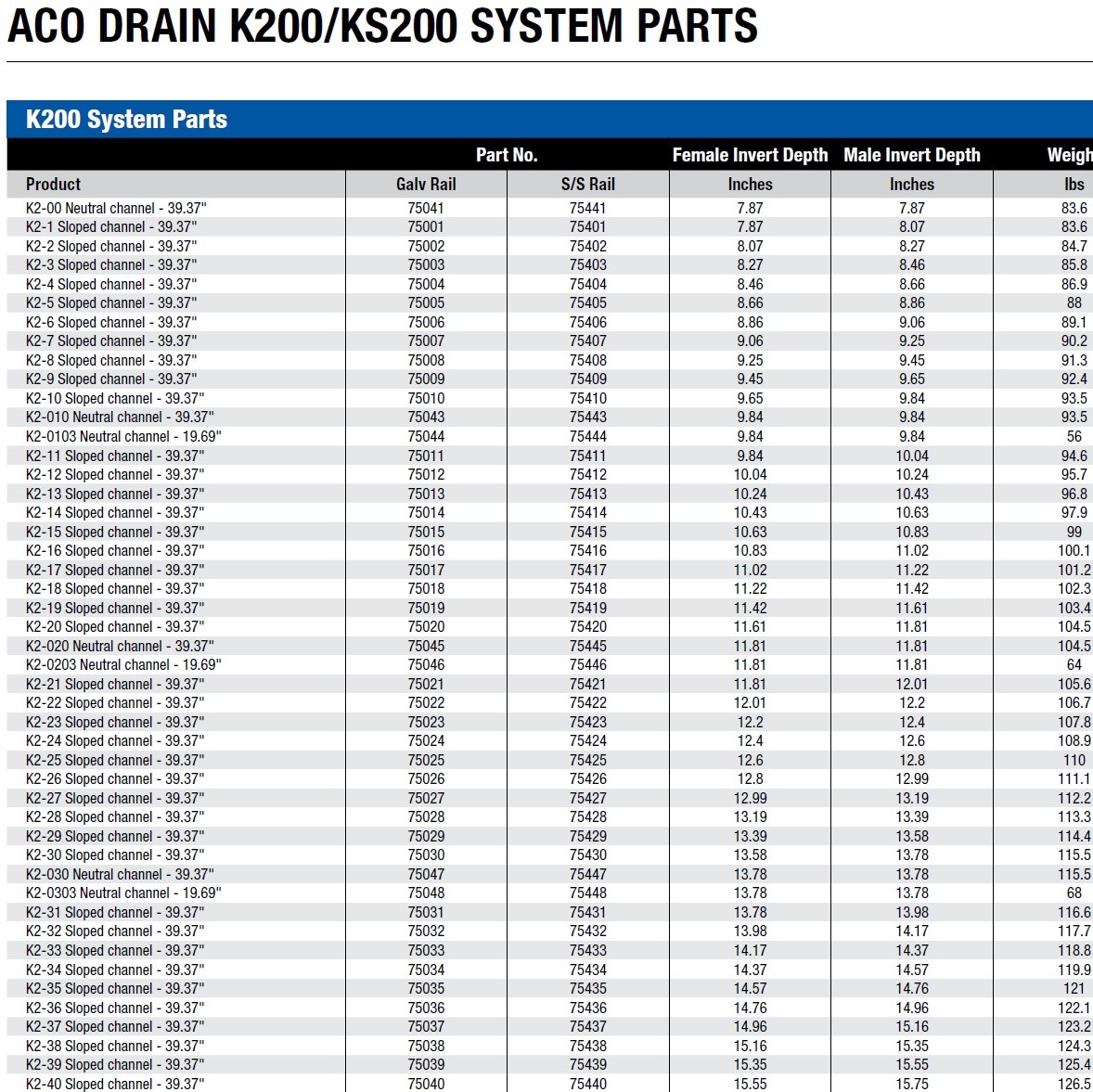

K200 / KS200
8″ internal width channel
K300 / KS300
12″ internal width channel
